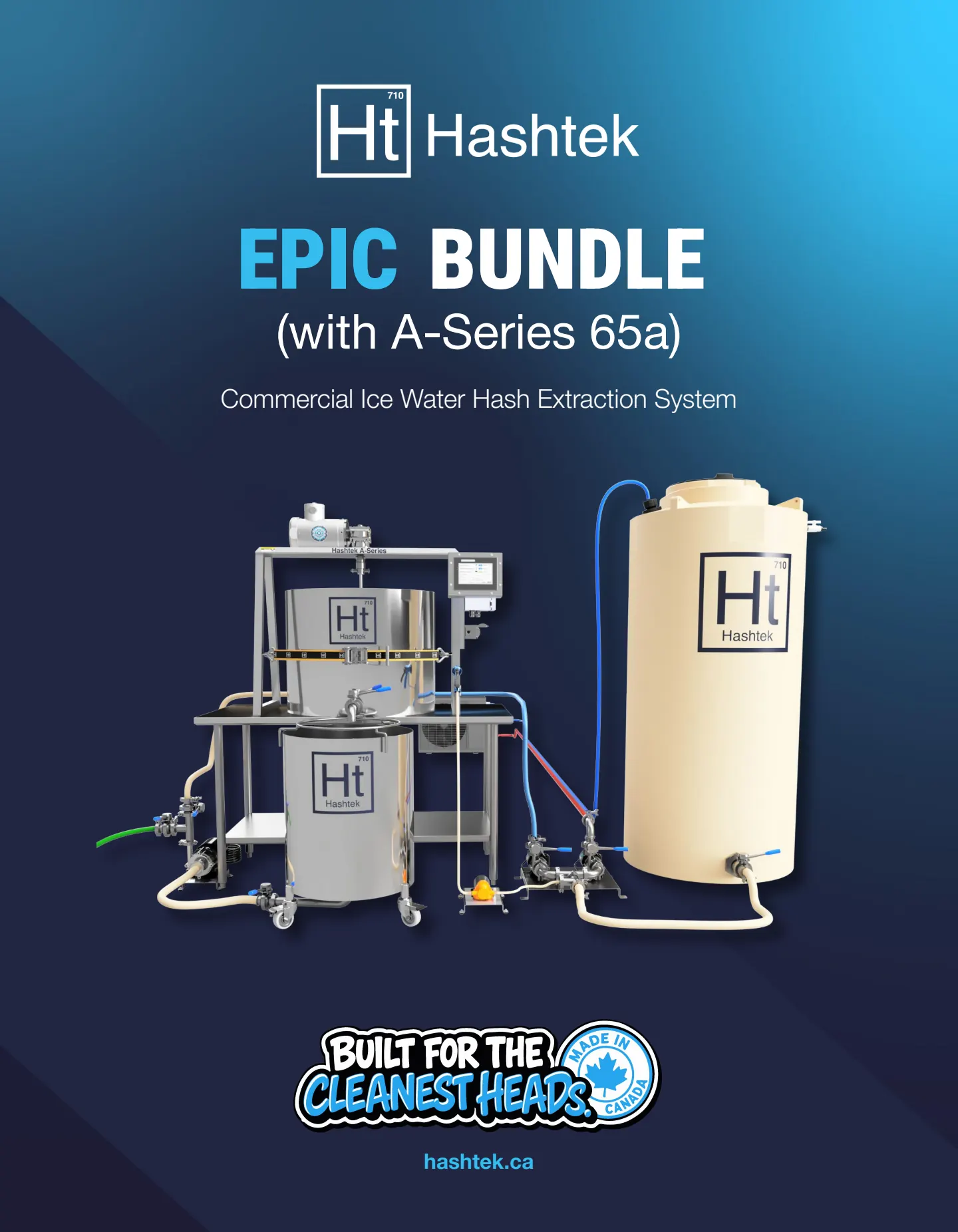

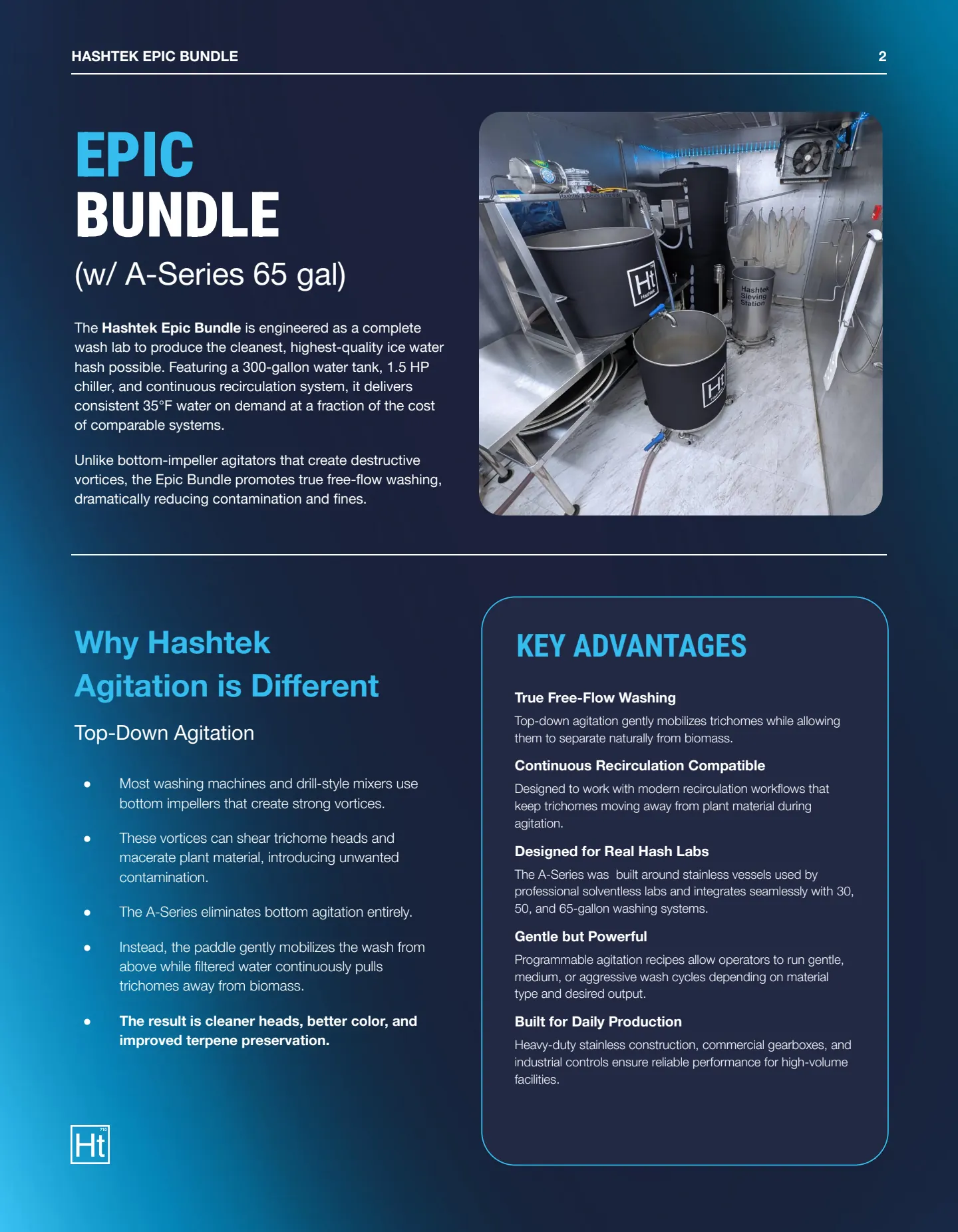

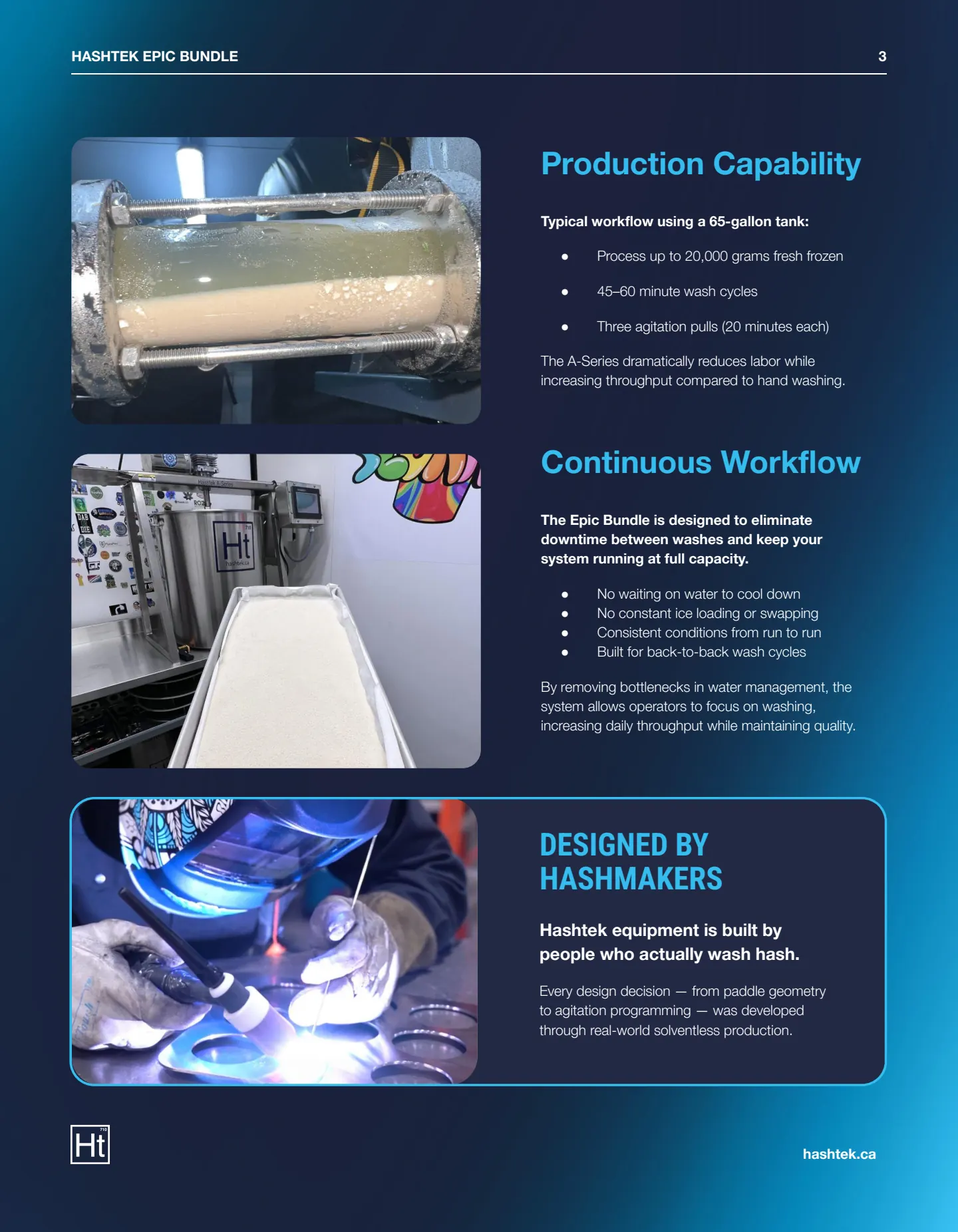

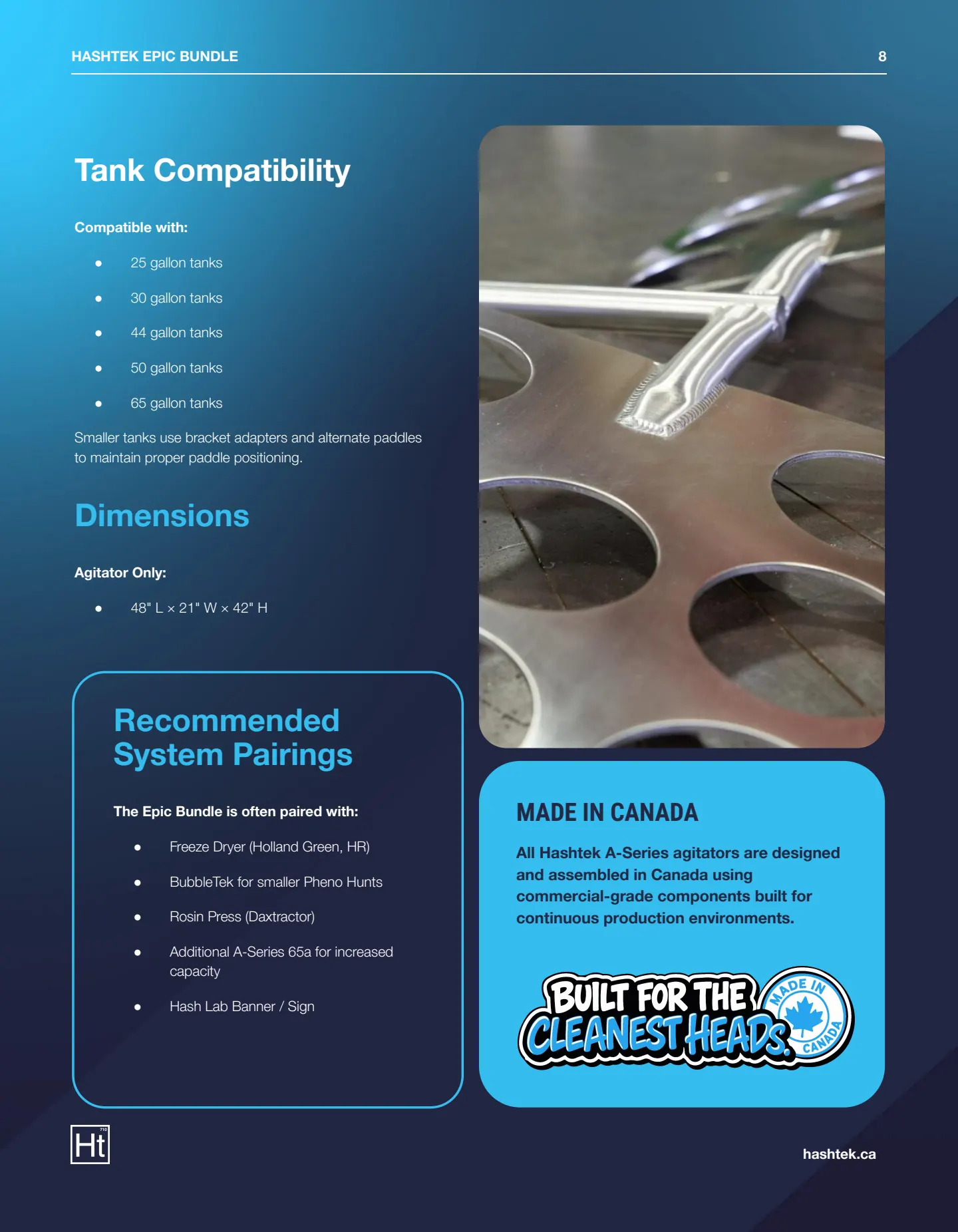

Hashtek Epic Bundle Spec Sheet (v1.12)PDF · 3.5 MB
Image 1 of 6 selected
A-Series
Hashtek Epic Bundle
$44,950.00 CAD$32,750.00 USD1-week lead time
Price shown in CAD.Price shown in USD.

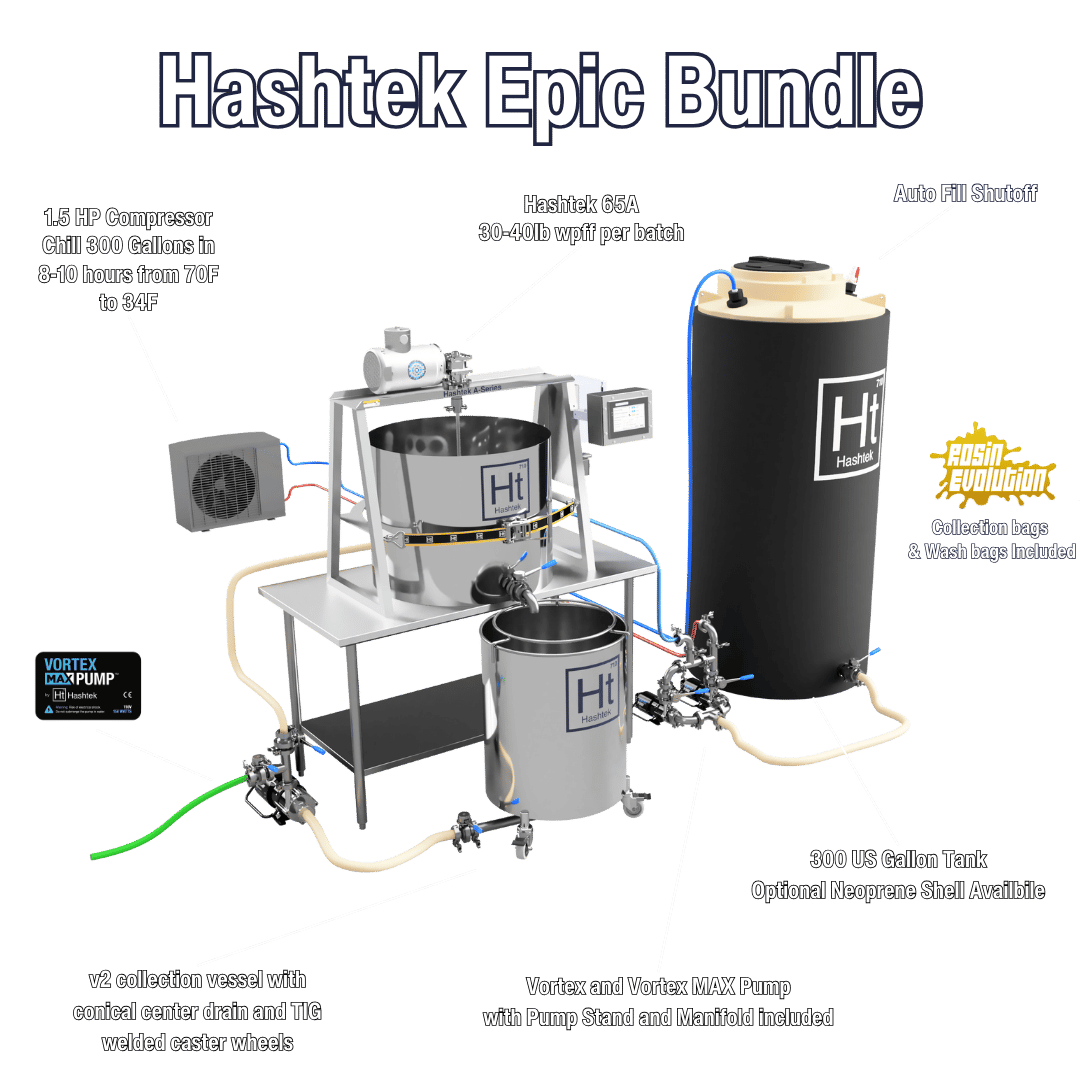

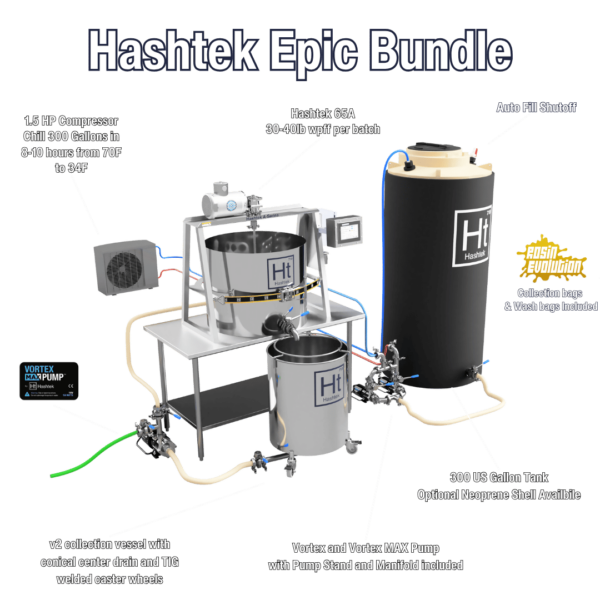

The Hashtek Epic bundle is a cross of the best selling Legendary Bundle and our Craft Chill Kit . This is a deluxe combo with everything you need to setup a clean hash lab compatible with continuous recirculation and 35F water on demand.The Hashtek Epic bundle is a cross of the best selling Legendary Bundle and our Craft Chill Kit. This is a deluxe combo with everything you need to setup a clean hash lab compatible with continuous recirculation and 35F water on demand. For ultimate comfort add the Hashtek Sieving Station to your order!Read moreRead less
- Lifetime craftsmanship guaranteeLimited lifetime coverage for welding and craftsmanship. See coverage.
- Shipping confirmed before checkoutNo surprise freight commitment. Delivery and U.S. customs.
Features & specifications
- Hashtek A-series Extra Wide (65 gallon, 7" LCD Screen) Comes with 65 gallon tank, 65a paddle and 65a sized filter screen
- Includes Check Valve Kit & Butterfly Valve Kit
- You can lower the price by downgrading to the Analog Control version from LCD control
- Hashtek v2 Collection Vessel (46 gallon) Comes with a filter screen so that you can keep ice in the collection vessel underneath your collection bags. Single port rather than dual port like is used for agitation tanks.
- Improved centre drain design
- TIG welded Blickle medical caster wheels (no more dollies)
Show more product detailsShow fewer product details
- 20 gallon bag adapter Allows for the use of smaller 20 gallon collection bags while still having the capacity of a large 50 gallon collection vessel.
- Recirculation Pump Hashtek Vortex Pump (Ships with 46 gallon collection vessel) Sanitary Magnetic Drive Pump
- Flow rate is more than enough for continuous recirculation
- 14 GPM / 14' head pressure
- Pump Stand Included
- Hashtek Vortex Max Pump (Ships with 65 gallon collection vessel) Sanitary Magnetic Drive Pump
- Extra fast flow rate for commercial producers or for long run lines
- 25 GPM / 30' head pressure
- Pump Stand Included 3
- Platinum Cured Sanitary Silicone Hose Sanitary TC Crimped. Hydraulic Machine Permanent Crimp.
- Braided for increased strength. Very easy to clean and resin will NOT stick to the side walls. Also clear so you can see inside your hoses to see what is in there.
- Cover : Smooth clear, food grade silicone hose
- Soft and supple at cold temperatures, unlike EPDM!
- Compliant with standards of FDA USDA and 3-A.
- Thick 1.5" hose is used on the low-pressure side (collection vessel to pump), while the thinner 1" hose is used on the high-pressure side (pump to agitation vessel).
- T-Fitting with Dual Butterfly Valves Installed after the pump for quick switching between recirculation and drain-to-waste.
- Dual butterfly valves offer a more sanitary solution compared to traditional 3-way ball valves, as there’s no hidden cavity to clean.
- TC to garden hose adapter. Enables connection to any locally available garden hose for easy draining. Hose not included, as required lengths and drain setups may vary.
- 4x Quick Disconnect Sets These are great to use for quickly disconnecting hoses. At the very least we recommend using one at the back of the tank for quickly uncoupling the hose from the check valve. The pro move is to have a quick disconnect at the end of every sanitary hose
- Bag Spreader This allows you to use a 220u work bag in the 50 gallon agitation tank. The bag spreader pushes the bag down and keeps it from getting caught in the agitation paddle.
- The bag spreader is not required but some of our customers find that it makes emptying and cleaning the tank easier. The other option is to use a 220u bag in your collection bag spread and catch the small amounts of flower that make it through the Hashtek false bottom there. We find that less than 3% of the biomass typically makes it through the filter screen.
- Work Bag Custom made 65 gallon work bag (tank liner) for a perfect fit in the Hashtek 65a tank.
- Food grade nylon, 220 micron
- v2 strap design
- 1x Staggered 20 Gallon Collection Bag Set Game changing staggered bag set made in collaboration with Rosin Evolution
- Micron sizes: 220, 190, 160, 140, 120, 90, 73, 45
- Rinse Pump Combo 55 GPM Seaflo Pump
- 2x 10' lengths of 1/2" Braided Food Grade Tubing
- Pro Flow Spray Head
- Quick Disconnect
- Crimped end fittings
- TC Tee Kit for tapping into Cold Water piping
- Pump Stand
- 12x Tri Clamps w/ Slicone Gasket
- 1x Sight Glass
- 1x Collection Spoon
- 1x Hashtek Scoop
- 1x LCD Screen Protector (LCD versions only)
- Custom Wooden Crate for Shipment included
- 1x Dual Input TC Kit
- 1x Hashtek Vortex Pump
- 1x Hashtek Vortex MAX Pump
- Dual pump stand and manifold – Custom fabricated from 304SS
- 2x 25′ lengths of food grade hose for recirculation line
- 1x 15′ length of food grade hose for filling agitation tank or rinse water (depending on your room temp and run line you may still want to use the rinse pump kit and a separate 55 gallon drum filled with ice for your rinse water
- Tri-Clamp Fittings, Gaskets, Valves and Adapters necessary for pipe manifold, tank connections and everything else you would need
- One- Linear Polyethylene Food Grade Vertical Closed Top Storage Tank
- 300 US Gallon Tank 35″diameter x 81″high
- Complete with: 8″ Threaded Access Cap
- Three – Poly Bulkhead Fitting w/EPDM Gaskualets
- Auto-Shutoff Refill System – no more overfilled tanks if you forget to turn off the water while filling the tank
- Custom Tank Sizes are available. Contact us for more info. Although typically we recommend the larger 300 gallon tank so you can stockpile cold water overnight and minimize temperature swings in the tank.
- Powerful 1.5 HP Compressor
- Intended to be placed outside of hash lab due to heat load
- Integrated Water Flow Temp Sensor to help prevent heat exchanger freeze up
- LED Controller with Precise Temp Control
- Integrated Heat Exchanger which is compatible with RO water
- Ability to Cool 300 Gallons from 70°F to 35°F in 8–10 hours in our tests
- Operates best at ambient air temperatures of 45°F or higher
- We do not recommend placing these chillers outside in cold climates during winter months, both due to reduced efficiency and potential for water to freeze in the heat exchanger

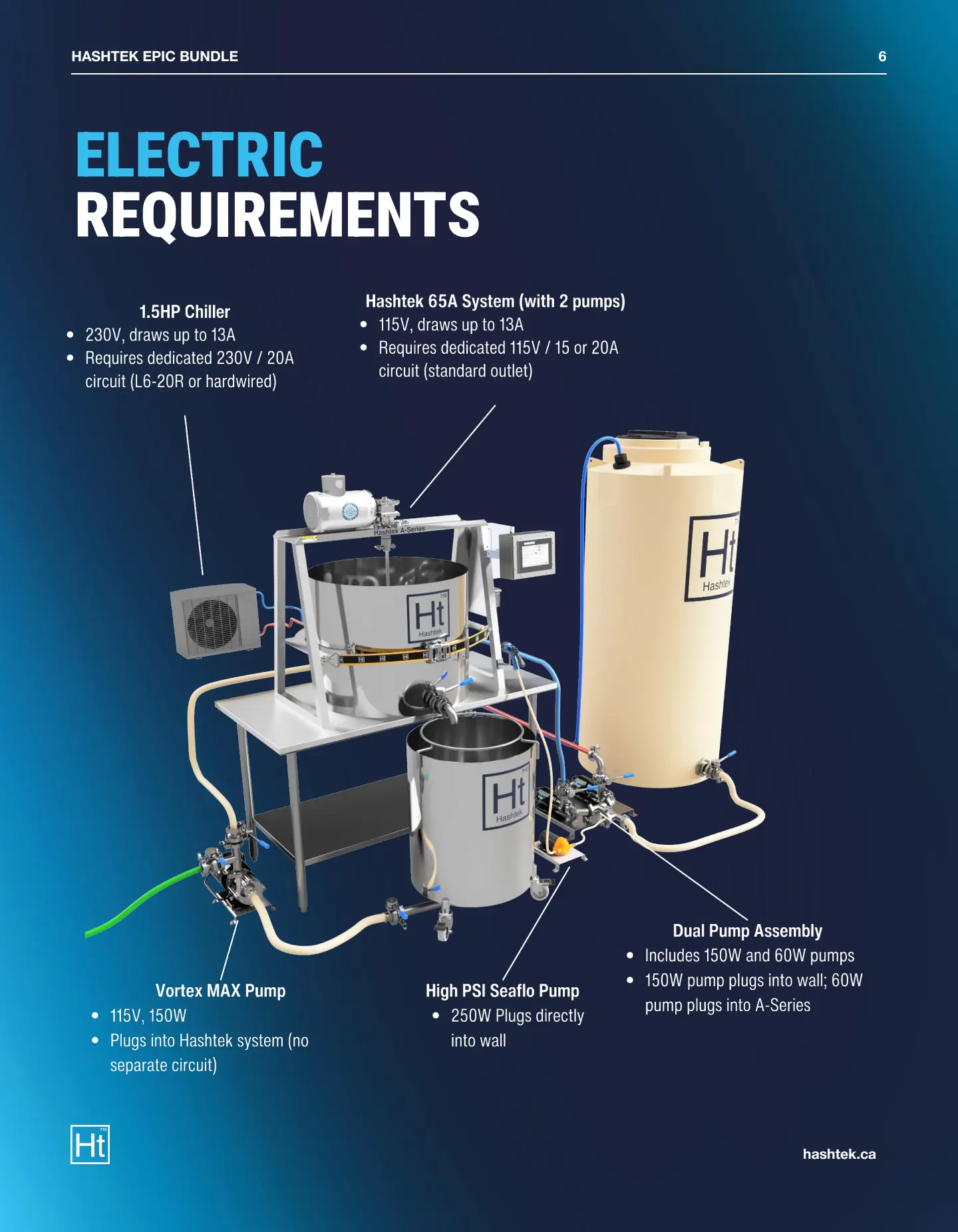

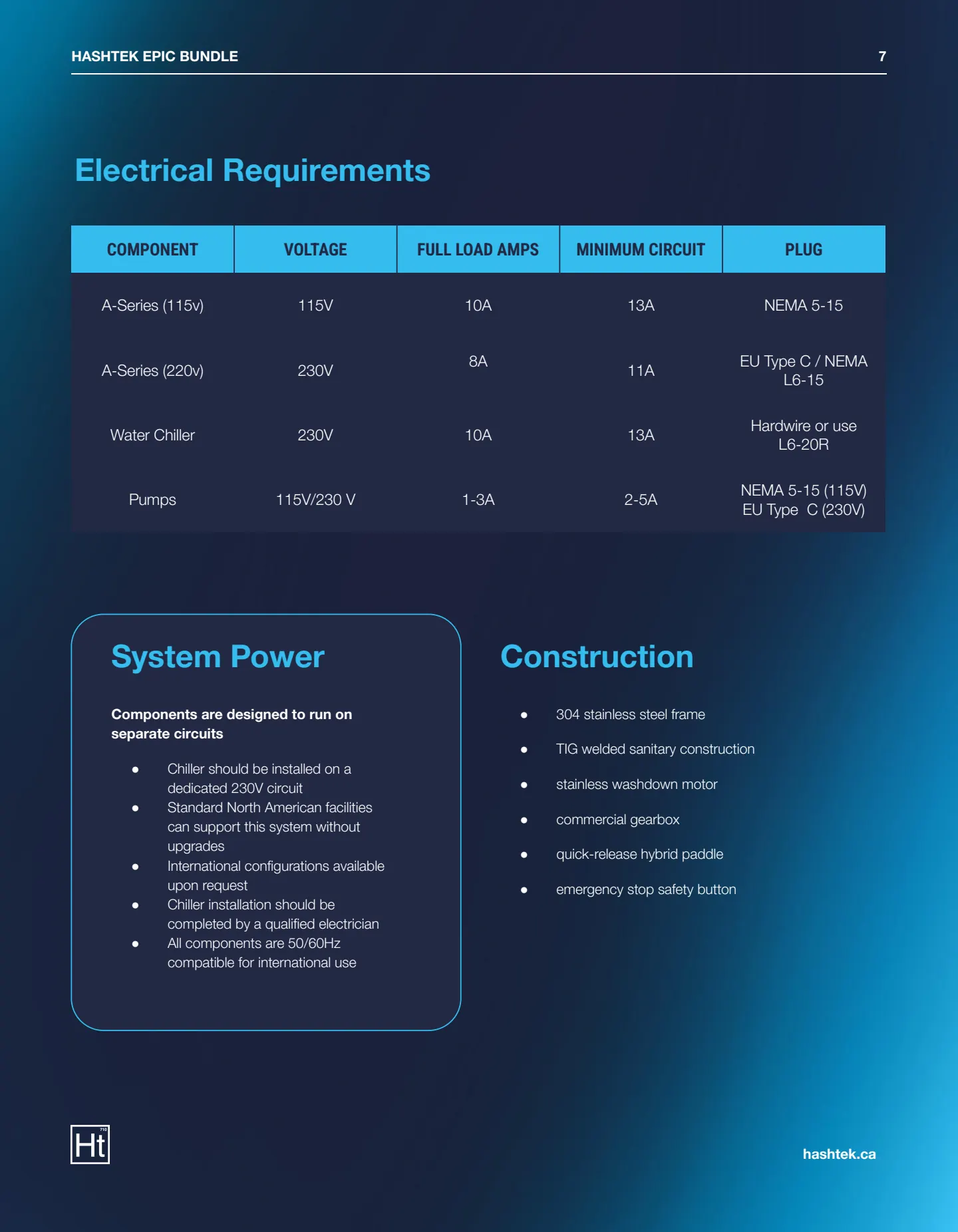

- Requires 200–240V single phase power
- At 230V the power draw is 8.8 amps with the compressor on
- R410A Refrigerant
- In wash labs that operate near freezing, insulation is not required as there is no temperature differential that will create condensation.
- For environments between 38-50F we will be releasing a neoprene insulating jacket in late 2024 for the 300 gallon tanks.
- If the cold water tank will be stored in an area with ambient temps above 60F we recommend 1″ Thick wrap of Armacell Closed Cell Insulation Elastomeric EDMP Material with R-Value 4.2
- Glued directly on the tank for increased efficiency
- Completely stops sweating of the tank and provides unparalleled insulation
- Note this adds 2″ to the outer diameter of the tank (for the 300 gallon this brings it to 37″ OD. Confirm this will fit through your door before ordering
- Because Armaflex material is very soft and easily damaged during shipping we recommend finding a local contractor to apply this insulation to your tanks and lines once they are installed in place.
- Additional 30 Gallon Tank Pilot / Pheno Hunt System
- Nice to have for smaller 1-5 kg fresh frozen batches
- Includes 30 Gallon Tank (Dual TC), 30a Paddle, 30a filter screen, 30a tank bracket
- This system still includes the 50a tank, paddle and screen - this is simply an add on so that you have two wash size vessels to select from depending on batch size.
- Neoprene Insulating Jackets Increase cooling efficiency by insulating tank/collection vessel
- Sewn together in Canada from 7mm closed cell Neoprene
- Recommended Tables: Sanitary Uline H-3628 - ($1,140) Welded Stainless Steel Workbench - 60" x 30" - 1500lb Capacity (May require height risers )
- Non Stainless Uline H-5785S - ($600) Mobile Steel Assembly Table 60" x 36" - 1000lb Capacity
- Note that 65 gallons of water weighs 540 lbs and the agitator + tank weighs around 150lbs so budget for 700lbs + 25% for stability. Therefore we recommend a table with a minimum capacity of 1000lbs for the extra wide with 65a tank.
- Bag Spreader This allows you to use a 220u work bag in the 50 gallon agitation tank. The bag spreader pushes the bag down and keeps it from getting caught in the agitation paddle. The bag spreader is not required but some of our customers find that it makes emptying and cleaning the tank easier. The other option is to use a 220u bag in your collection bag spread and catch the small amounts of flower that make it through the Hashtek false bottom there. We find that less than 3% of the biomass typically makes it through the filter screen. Work Bag Custom made 65 gallon work bag (tank liner) for a perfect fit in the Hashtek 65a tank. Food grade nylon, 220 micron v2 strap design 1x Staggered 20 Gallon Collection Bag Set Game changing staggered bag set made in collaboration with Rosin Evolution Micron sizes: 220, 190, 160, 140, 120, 90, 73, 45 Rinse Pump Combo 55 GPM Seaflo Pump 2x 10' lengths of 1/2" Braided Food Grade Tubing Pro Flow Spray Head Quick Disconnect Crimped end fittings TC Tee Kit for tapping into Cold Water piping Pump Stand 12x Tri Clamps w/ Slicone Gasket 1x Sight Glass 1x Collection Spoon 1x Hashtek Scoop 1x LCD Screen Protector (LCD versions only) Custom Wooden Crate for Shipment included 1x Dual Input TC Kit Included with Craft Cold Water Tank Bundle: Recirculation System
- Water Tank

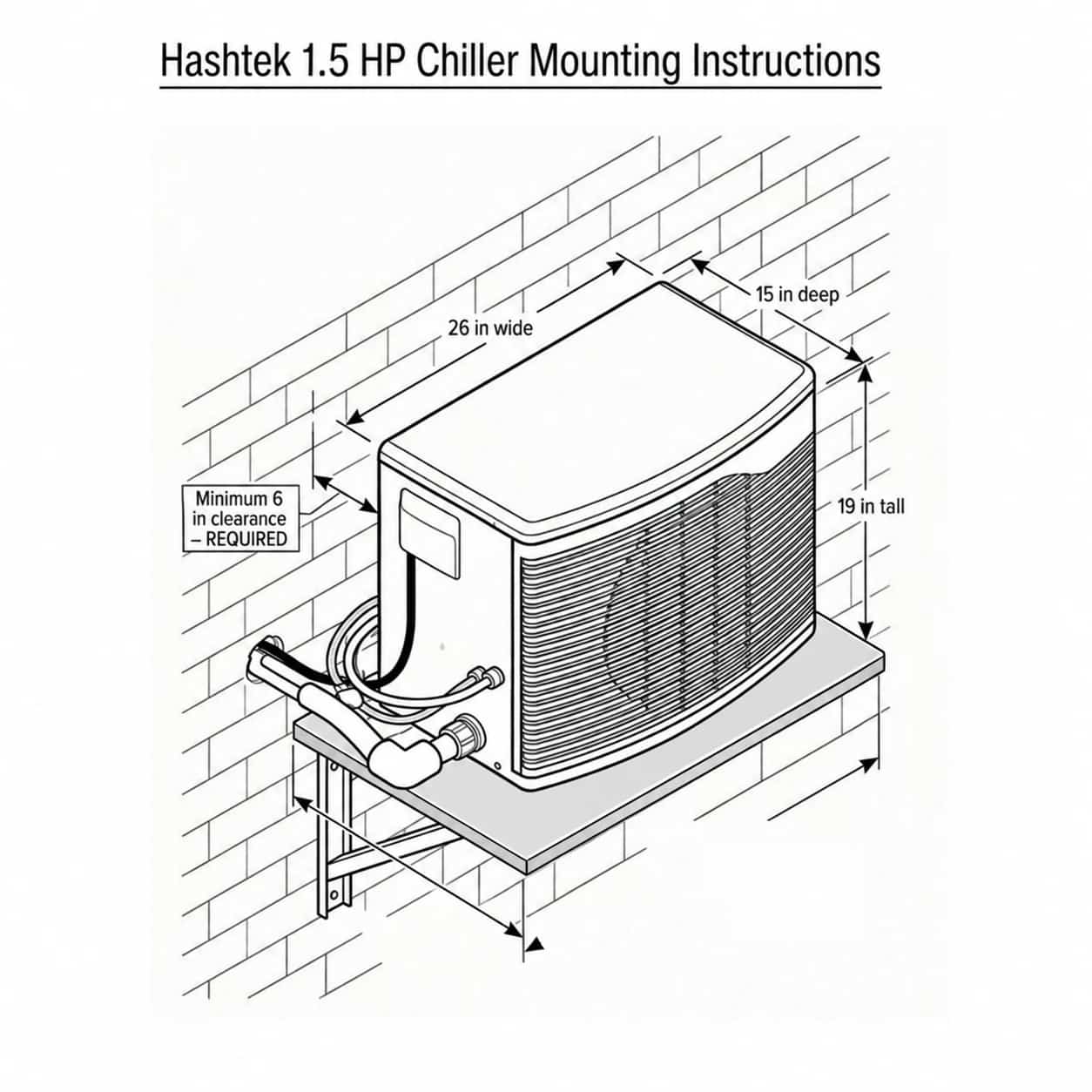

- 1.5 HP Chiller (300 Gallon + No Tank Configurations)
- Insulation (optional)
- Virtual Commissioning with a Hashtek Expert A personalized, step-by-step walkthrough of your first wash with live expert guidance. Includes follow-up commissioning support to ensure your system is running smoothly and optimized for your lab’s workflow.

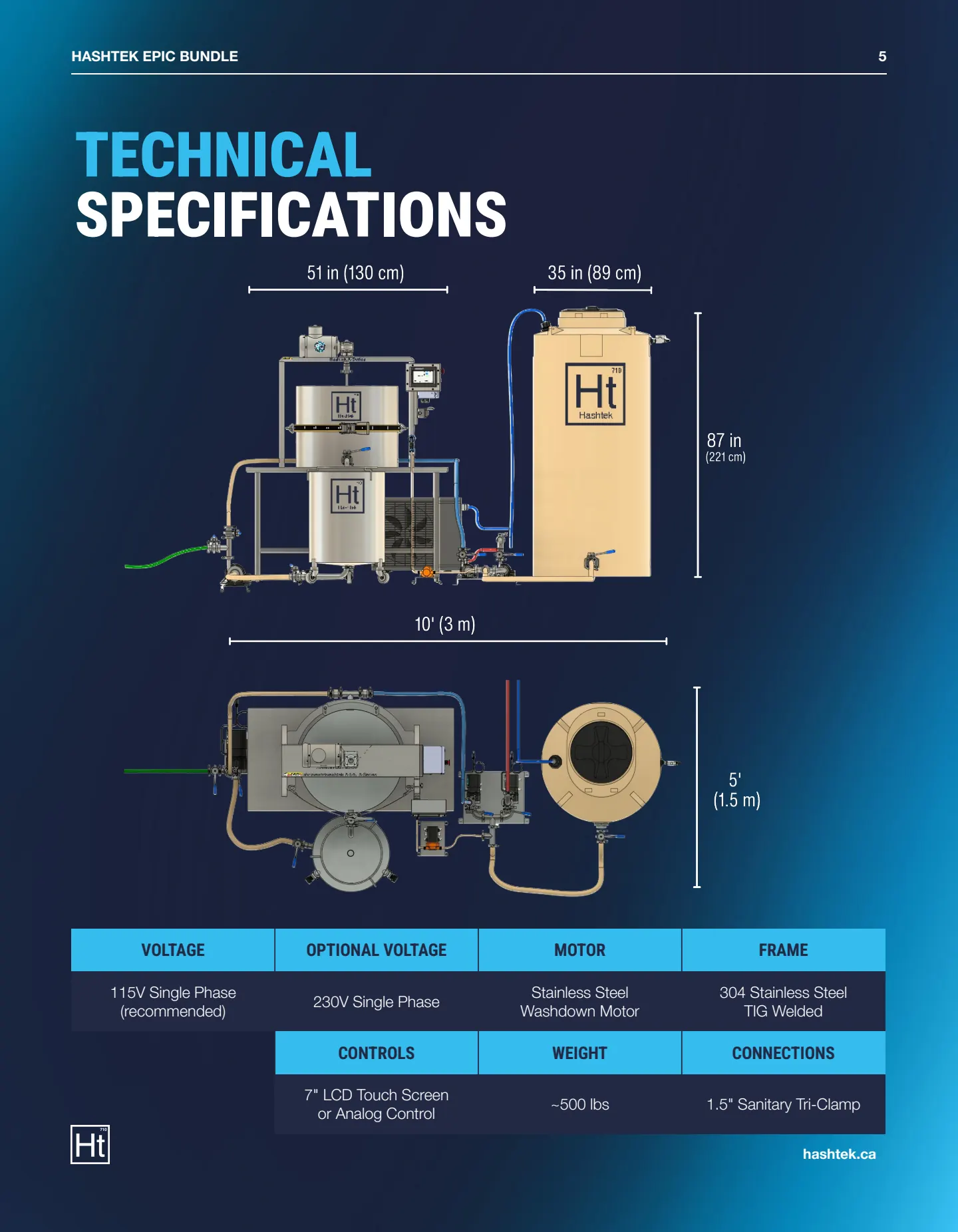

| Dimensions | 26" x 15" x 19" |
|---|
Shipping
Freight and customs
Delivery type: Freight delivery (large equipment)
Canada and U.S. shipping options are confirmed before checkout. See the shipping and U.S. customs guide.

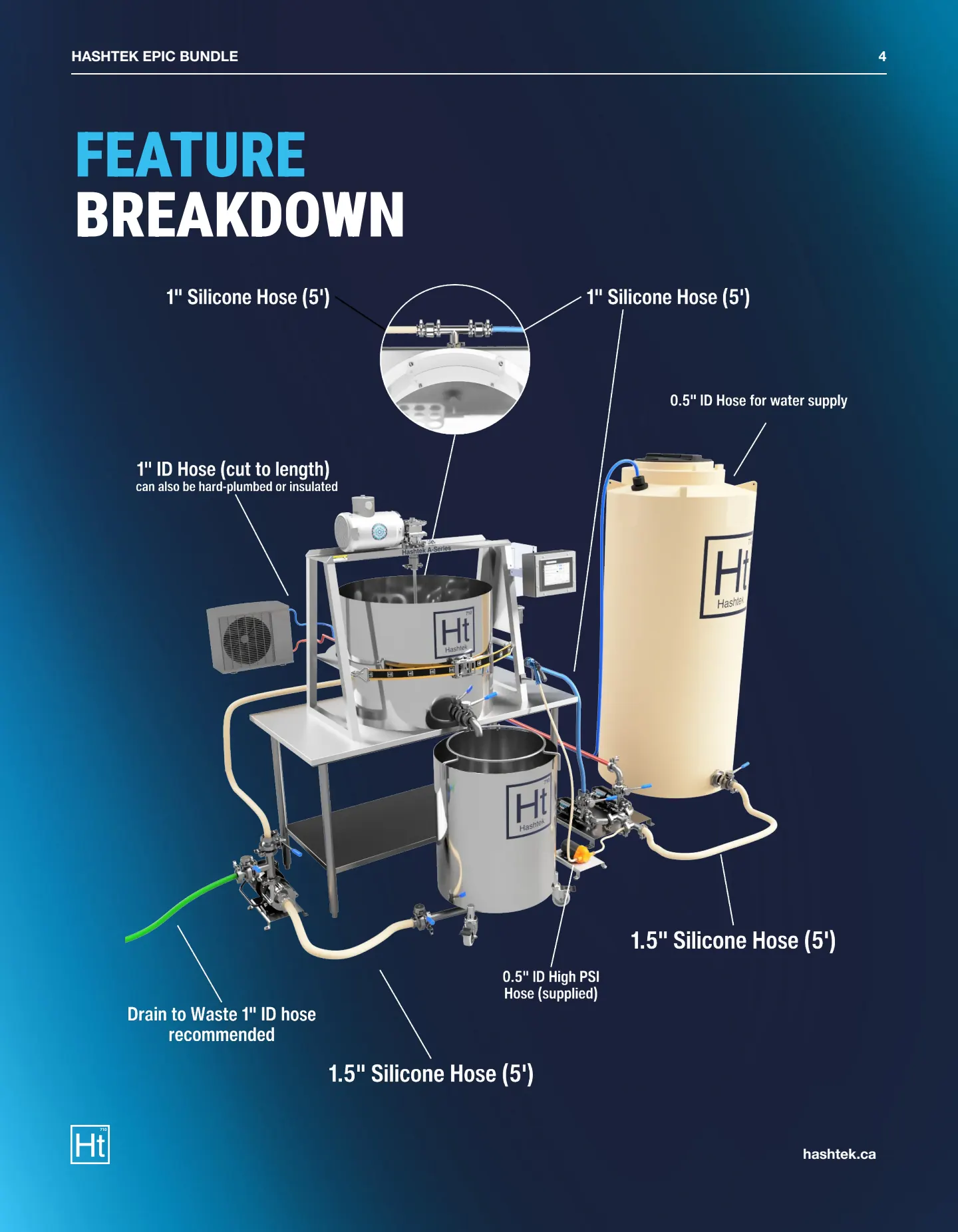

Complete packageKit contentsExpand to see every included item and connection.
Epic Bundle
Main equipment
- 1 × 65-gallon A-Series Extra Wide agitator with 7-inch LCD control
- 1 × 65-gallon agitation tank
- 1 × 65-gallon stainless paddle and paddle pin
- 1 × 65-gallon false bottom / filter screen
- 1 × 65-gallon bag spreader
- 1 × 46-gallon collection vessel with casters
- 1 × collection-vessel false bottom
- 1 × 20-gallon collection-bag adapter
- 1 × 65-gallon, 220-micron work bag
- 1 × 300-gallon food-grade cold-water tank
- 1 × 1.5 HP water chiller, 220V
Pumps and stands
- 2 × Vortex MAX pumps
- 1 × Vortex pump
- 2 × rinse pumps
- 3 × individual pump stands
- 1 × stainless dual-pump stand and manifold
Hoses
- 2 × 25-foot, 1-inch food-grade recirculation hoses
- 2 × 5-foot, 1.5-inch sanitary silicone hoses
- 2 × 5-foot, 1-inch sanitary silicone hoses
- 2 × rinse-hose packages, each with a 5-foot intake and 8-foot spray line
- 1 × 15-foot, 1-inch drain hose
Valves and fittings
- 39 × 1.5-inch tri-clamps with gaskets
- 6 × tri-clamp butterfly valves
- 2 × tri-clamp check valves
- 6 × standard tri-clamp elbows
- 1 × long collection-vessel elbow
- 3 × standard tri-clamp tees
- 1 × vent tee with blow-off valve
- 1 × tri-clamp-to-1-inch hose-barb fitting
- 1 × tri-clamp-to-rinse-hose fitting
- 4 × sanitary quick-disconnect sets
- 2 × rinse-line quick-disconnect pairs
- 4 × hose clamps
- 2 × barbed reservoir connection pipes
- 1 × top reservoir port
- 1 × bottom reservoir port
- 1 × automatic refill / float-valve assembly
Collection and accessories
- 1 × Rosin Evolution staggered 20-gallon eight-bag set
- 1 × sight glass
- 1 × collection spoon
- 1 × scoop
- 1 × agitation-tank insulating jacket
- 1 × collection-vessel insulating jacket
- 1 × spray-head holder
- 1 × paddle holder
- 2 × rinse-water intake arrangements: tank-fed and integrated tri-clamp feed
Specs & requirements
Product spec sheets
Read the spec sheet below or save a copy for later.

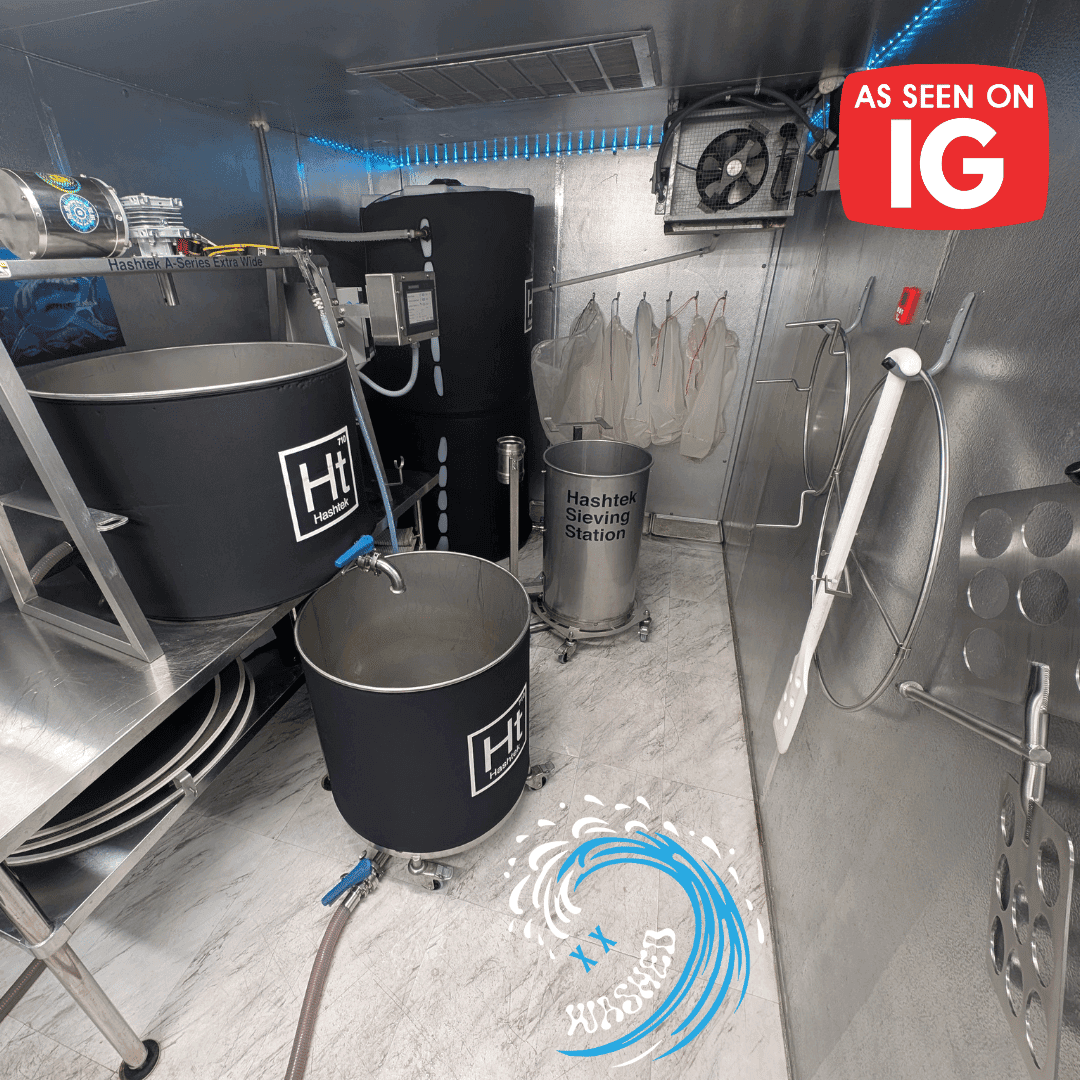

From the wash room
Hashtek in action
Customer reviews
5.0out of 5
Based on 8 reviews
The system itself and the productivity of it is just next level. With other machines there is a lot of stop and go, stop and go that hinders productivity. The Hashtek captures the best of the traditional methodology. And when I say traditional I mean hand paddling. If you’re going to do what we call “naked wash” and hand-paddle flower, the heads fall down. This particular machine being top-down mimics hand paddling with semi-automation that we can control. Can the machine run 15,000 grams? Yeah, but we’re more in the 8,000-10,000 gram range for a reason. We want to be able to run much smaller batches and mimic the hand-washing application. It’s a beefy industrial machine with a control point panel and a tremendous amount of thought went into it. We’ve seen other machines work well in other applications. I think it’s like pots and pans for a chef. Are you copper-clad? Are you cooking on gas? It’s about preferences. But when it comes to being able to run smaller batches and still be efficient, and have that quality there, the Hashtek has been the one for us. In the past, all your bags would be touching the side of the collection vessel. I’m not really sure why it took 20 years to implement a floating ring for this application but kudos to the person who thought about it at Hashtek. Once you see the Hashtek in action, you’re going to say, “This was designed for a hash makers by hash makers.” I’m not even sure how you go back.
The hashtek 50A has been incredible. It has made the washing process much more streamlined and efficient. It takes away the need to paddle for hours and you don't have to lift heavy barrels anymore. We are able to work through materiel much faster, and I love having the ability to fully control how gentle the machine runs. Amazing unit and very worth having it.
We purchased our hashtek 50A in the fall of 2022 and it has been the best investment in our lab by far. With the 50A we can easily crush 8,000-10,000 gram washes. The LCD display provides you the ability to customize your agitation speeds and time as well as utilize your rinse pump and recirculating pump all from one screen. Couldn't recommend this enough
One of the best purchases I've made. We are flying through material. What would have taken us into early next year will be finished by the months end. Thank you for offering a unit that puts in the work at a more affordable price point. In hindsight. That tilting tank setup should have been what we went with but we are making it work and it's an amazing tool to have around.
Been loving my 50a hashtek unit since I got it few months ago, I came from handwashing and tested this machine vs a hand wash with lab results proving the Hashtek was slightly more pure with A LOT less effort. Aleks is a pleasure to work with/very knowledgeable in the industry and will treat you right! Highly recommend this unit to any hash maker and I will personally never go back to hand washing! Hopefully one day I will be rocking a 65t unit. Kudos to Hashtek for providing affordable hash making equipment!
The most modular ice water system on the market! Packs away nice when I am not using it and very affordable compared to other options on the market. Thank you Hashtek!
My partner and I have the Hashtek 50a with the 7" LCD Control. We love the setup and Aleks was a huge help with getting our lab setup. The blog posts on this website are awesome. PROs: -Makes great quality hash -External pump control via the LCD screen is awesome -By far the best priced unit on the market CONS: -Flat bottom so on the last pull you have to slightly tilt the tank -We don't use the strap, tank is heavy enough when filled with ice water
The most versatile and affordable solution for hash washing on the market. Completely innovative design. Alex is great to work with and knowledgeable in the industry.
Related
Same category
Hashtek 30a Tank + Paddle Add-On Kit
This kit is designed to be an add on for the A-series. For people who already have our A-series agitator but would like to add an additional different sized tank. Comes with dual…

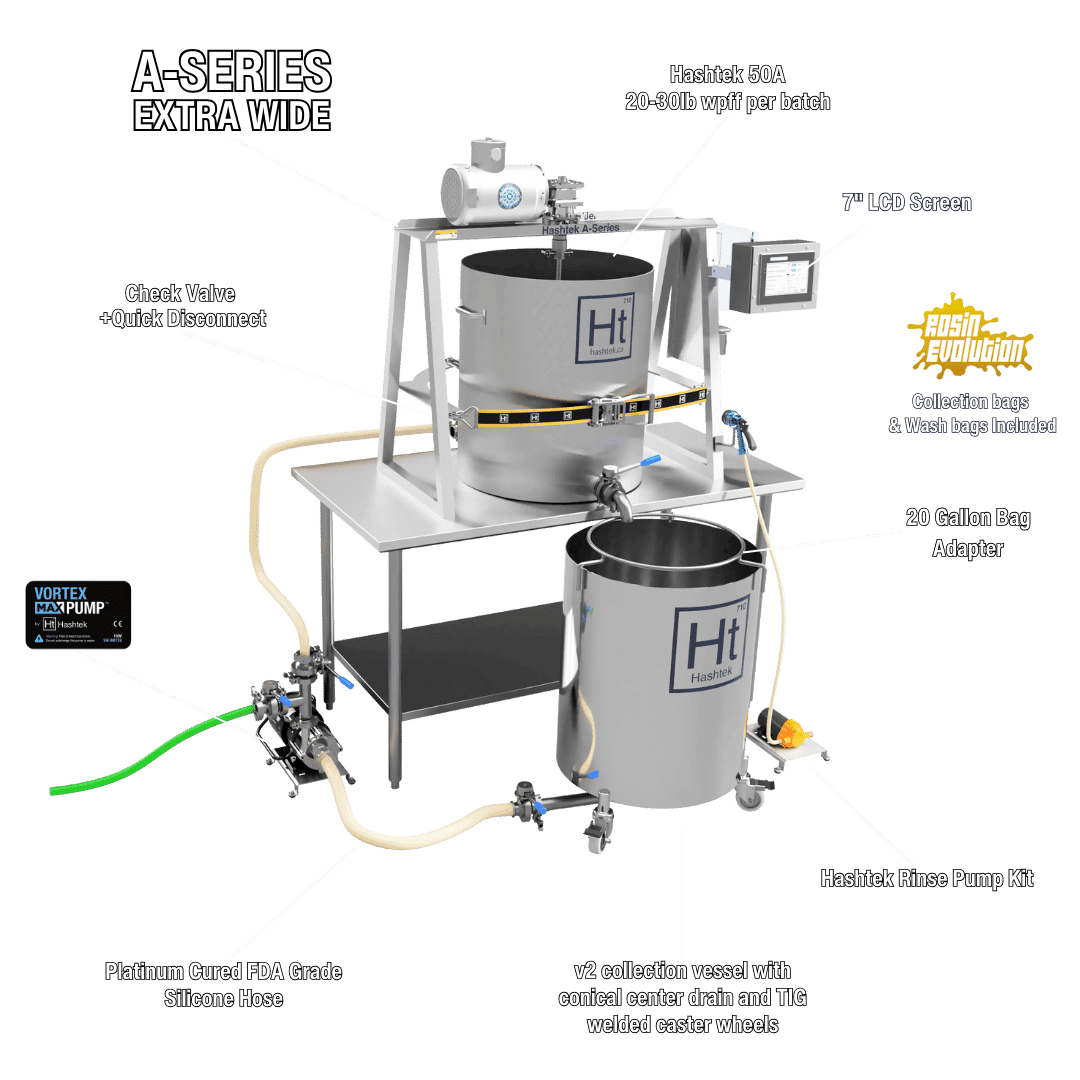

Hashtek 50a Legendary Bundle
The Hashtek 50a Legendary Bundle as hand picked out by our founder Aleks. This is a deluxe combo with everything you need to setup a clean hash lab compatible with continuous…

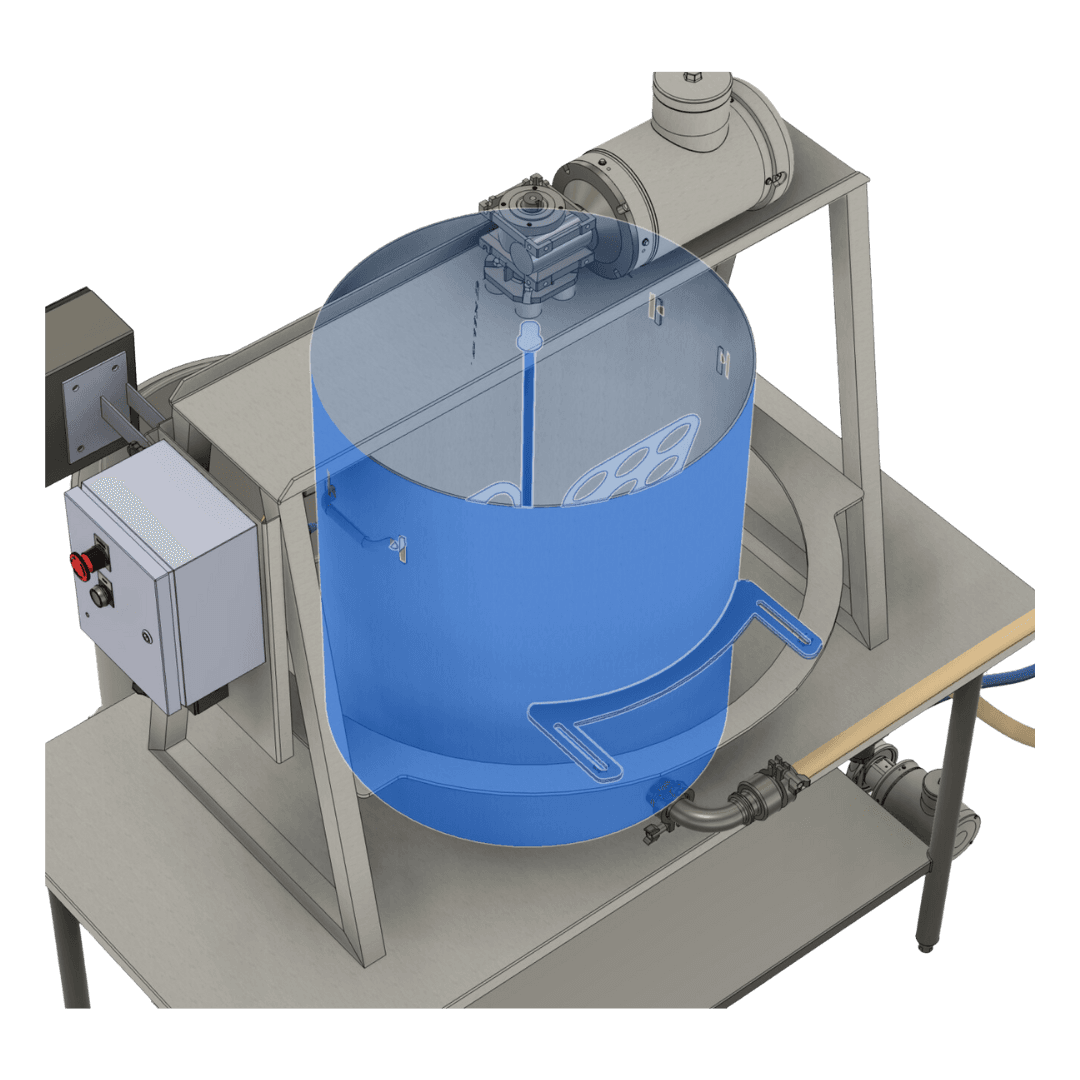

Hashtek 50a Tank + Paddle Add-On Kit
