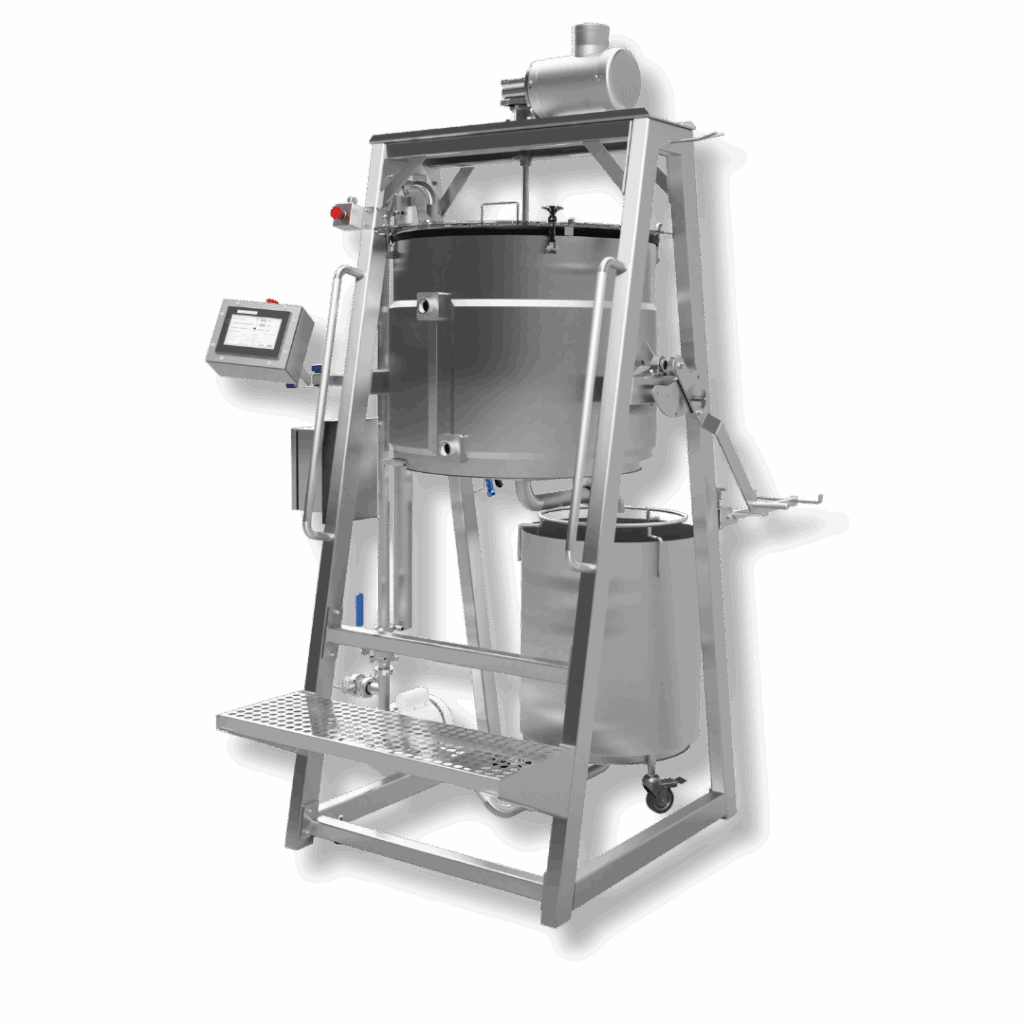

Tilt-Series

Hashtek Commercial Bundle

Contact for quote4–6 week lead time

Price shown in CAD.Price shown in USD.

Contact Hashtek for current pricing and availability. We will confirm configuration, lead time, and shipping or freight options.Contact Hashtek for current pricing and availability. We will confirm configuration, lead time, and shipping or freight options. Designed for the high throughput facilities that use their machines year round. This setup is bundled with a 85t, 250 gallon cold water tank and 5 HP chiller for a true ice-free turn-key washing system. Produce 20-100 kg of rosin per month. Lead time is 8 weeks.Read moreRead less
Contact for quote

Features & specifications

  • Turnkey ICE Water ( bubble hash ) Extraction Unit
  • Patented tip-to-empty system for effortless emptying of biomass
  • Continuous Recirculation compatible
  • Consider pairing with our Cold Water Tank
  • Sanitary stainless Steel Piping for recirculation, drain, fresh water and rinse water
  • 7″ Industrial LCD with advanced control options
Show more product detailsShow fewer product details
  • Hashtek’s Proven Gentle Top-Down Agitation
  • Interchangeable Paddle (includes ICE paddle)
  • Sanitary 304 SS construction throughout
  • Sealed Washdown safe Electric motor
  • Single Phase 230v FLA/MCA: 13 / 16 (requires 4-wire 230V with neutral) Nema L14-20 Plug
  • Includes VFD speed control with an upper limit of 60rpm
  • Proprietary Hashtek Work Screen eliminating the need for 220u work bags
  • Sanitary Butterfly Valves & Compression Fittings, no exposed threading
  • CIP ready
  • 2x sanitary pumps included (on demand water pump & recirculation pump)
  • 85 Gallon Water Capacity in Agitation Vessel
  • Includes 55 Gallon Collection Vessel
  • Designed to be run by a single operator
  • Gravity Drain for Trichome Rich Water, Sanitary pumps for filtered water
  • Crimped end sanitary hose provided
  • Made In Canada, lifetime warranty on craftsmanship & lifetime support
  • Fastest setup and takedown on the market
  • Available with glycol jacket to reduce ice requirements, or for iceless washing .
  • Theoretical max of 55lb (25kg) wpff capacity per run. Hash makers with a passion for quality typically run 12-15kg wpff per batch
  • Produce up to 5-10 lbs (2-5 kg) of rosin/melt per day (@ $30/gram wholesale $60-150k revenue per day)
  • FDA and Health Canada compliant
  • Optional Add-Ons: (1) Thermometer that measures recirculation water temperature and displays it on screen (2) Hashtek Iceless paddle (for no ice washes ) (3) Clean In Place LID w/ 360 degree spray head (4) neoprene insulating jackets (5) glycol jacketing for iceless washing , (6) Ergonomic Freeze Dryer Tray Holder (please specify size of Freeze Dryer at time of order)
  • The 85t dimensions are 46” x 60” x 91″ (and yes it will fit in a sea-can)
  • Bolt together design – allows you to get the system through small doorways. You only need a 31″ wide door.
  • Agitation Tank Overflow Sensor (optional) Stops agitation tank from overflowing if operator is distracted
  • Smart Auto-Refill Technology – Avoid temperature swings when depleting large amounts of water from the tank
  • Triple Walled tank (Water > Glycol > 2″ Insulation)
  • Includes sanitary recirculation pump for maximum cooling efficiency
  • Sanitary TIG welded plumbing throughout
  • High Level, Low Level Alarms
  • continuous Volume Monitoring
  • Glycol Dimple Jacket around full circumference of the tank.
  • 2″ of Mineral Wool Insulation Clad with 304-Stainless
  • Designed to be paired with a Hashtek Agitator. We recommend the 250 Gallon model for Pairing with the Hashtek 65t
  • Recommended to pair with an HTC-3 Chiller or larger. See glycol chiller size calculator for more info.
  • Flat Top Lid with Hinge
  • Two Sanitary Inlet Ports
  • Live Temp Monitoring
  • 7″ LCD Display and Control Interface
  • Conical Bottom for quick drain
  • Adjustable feet
  • Approximate Outside Measurements: 250 Gallon Tank – Ø42”x78”
  • Chiller package consists of the following:
  • Engineered high efficiency heat exchanger for maximum energy savings
  • Microprocessor controller with communication capabilities
  • Complete control panel with single point electrical connection, breakers, starters & safety switches
  • Brass ball valves for supply and return glycol connections • Louvered aluminum access panels for easy service & maintenance
  • Factory run tested and fully charged with refrigerant • Complete refrigeration circuit
  • Air-cooled microchannel condenser
  • Glycol pump
  • Fluid bypass valve
  • All insulated copper piping
  • Powder coated steel frame
  • Powder coated aluminum housing
  • Insulated stainless steel glycol reservoir
  • 39,223 BTU/HR at 28F
  • 60 Gallon Stainless Steel Glycol Tank
  • We recommend 30 Gallons of Propylene Glycol for this system at a dilution ratio of 35%
  • Glycol Chilled Option
  • v2 Lid (can be used for cleaning and during agitation)
  • RTD Integration (temp sensor in recirc. plumbing)
  • Fold-Away Freeze Dryer Tray Holder (please specify size of Freeze Dryer at time of order)
  • Agitation Tank Overflow Sensor
  • 20 Gallon Bag Adapter

Shipping

Freight and customs

Delivery type: Standard parcel

Canada and U.S. shipping options are confirmed before checkout. See the shipping and U.S. customs guide.

Customer reviews

4.8out of 5

Based on 8 reviews

5 stars6
4 stars2
3 stars0
2 stars0
1 star0
Tony Verzura
5 out of 5

The system itself and the productivity of it is just next level. With other machines there is a lot of stop and go, stop and go that hinders productivity. The Hashtek captures the best of the traditional methodology. And when I say traditional I mean hand paddling. If you’re going to do what we call “naked wash” and hand-paddle flower, the heads fall down. This particular machine being top-down mimics hand paddling with semi-automation that we can control. Can the machine run 15,000 grams? Yeah, but we’re more in the 8,000-10,000 gram range for a reason. We want to be able to run much smaller batches and mimic the hand-washing application. It’s a beefy industrial machine with a control point panel and a tremendous amount of thought went into it. We’ve seen other machines work well in other applications. I think it’s like pots and pans for a chef. Are you copper-clad? Are you cooking on gas? It’s about preferences. But when it comes to being able to run smaller batches and still be efficient, and have that quality there, the Hashtek has been the one for us. In the past, all your bags would be touching the side of the collection vessel. I’m not really sure why it took 20 years to implement a floating ring for this application but kudos to the person who thought about it at Hashtek. Once you see the Hashtek in action, you’re going to say, “This was designed for a hash makers by hash makers.” I’m not even sure how you go back.

Corey Cholock / Greybeard
5 out of 5

We were lucky enough to give the Hashtek 65T a spin for a few days and it is a beast! First off, it is relieving to finally see equipment made by hash makers for hash makers and you can tell by the design of the equipment that the Hashtek team knows what’s up. From the fully customizable wash settings, the incredibly thought-out recirculating system, to even the smallest details like having a place to hold your freeze drier tray while collecting. This machine is a hash makers dream! Big thank you to Aleks for bringing it by the farm!

Joshua Rutherford/ Dutch Blooms
5 out of 5

Aleks was cool enough to send a unit over for us to demo. We brought in a bunch of hash makers and needless to say everyone was very impressed. The hashtek team has been working hard to put out an affordable unit with all the features. They hit the target 100! Big big ups to the hashtek team.

Adam from Mission Hill Melts
5 out of 5

I was lucky enough to use this unit for 4 days at the Melting of the Heads event in Washington and it was a great unit. We easily spun 12,000+ WPFF grams with ease. The unit has an excellent onboard control options that will allow you to dial in the agitation. The recirculating pump allows you to move water throughout the unit with ease. For high throughput options we would highly recommend this

Greg Henley
5 out of 5

We have been using this in our Ontario production facility for 3 months now. Amazing machine that was built by hash makers while still being Health Canada compliant. During production we wash up to 80 kg of ff per day with a single operator. Can't beat that efficiency.

Karl ocallagahn
5 out of 5

We can’t say enough great things about our hashtek machine at Medical Saints. Extremely user friendly. The tank tips so cleaning is very simple. The LCD is set up great & also very user friendly

Ras Kaya Paul
4 out of 5

Hashtek 85t is a highly functional processing machine. It’s easy to operate and clean. It has allowed us to increase productivity and decrease man hours

Quinn (Professor Q) caliendo
4 out of 5

Great machine. The water movement system is amazing. The agitation controls r very customizable for soft or heavy impact. Was easy to fit 1200 grams with the material loose like I like it. Wanted the top if the slury to mix to the bottom alot more bot unlikely it would mater just something I like to see
