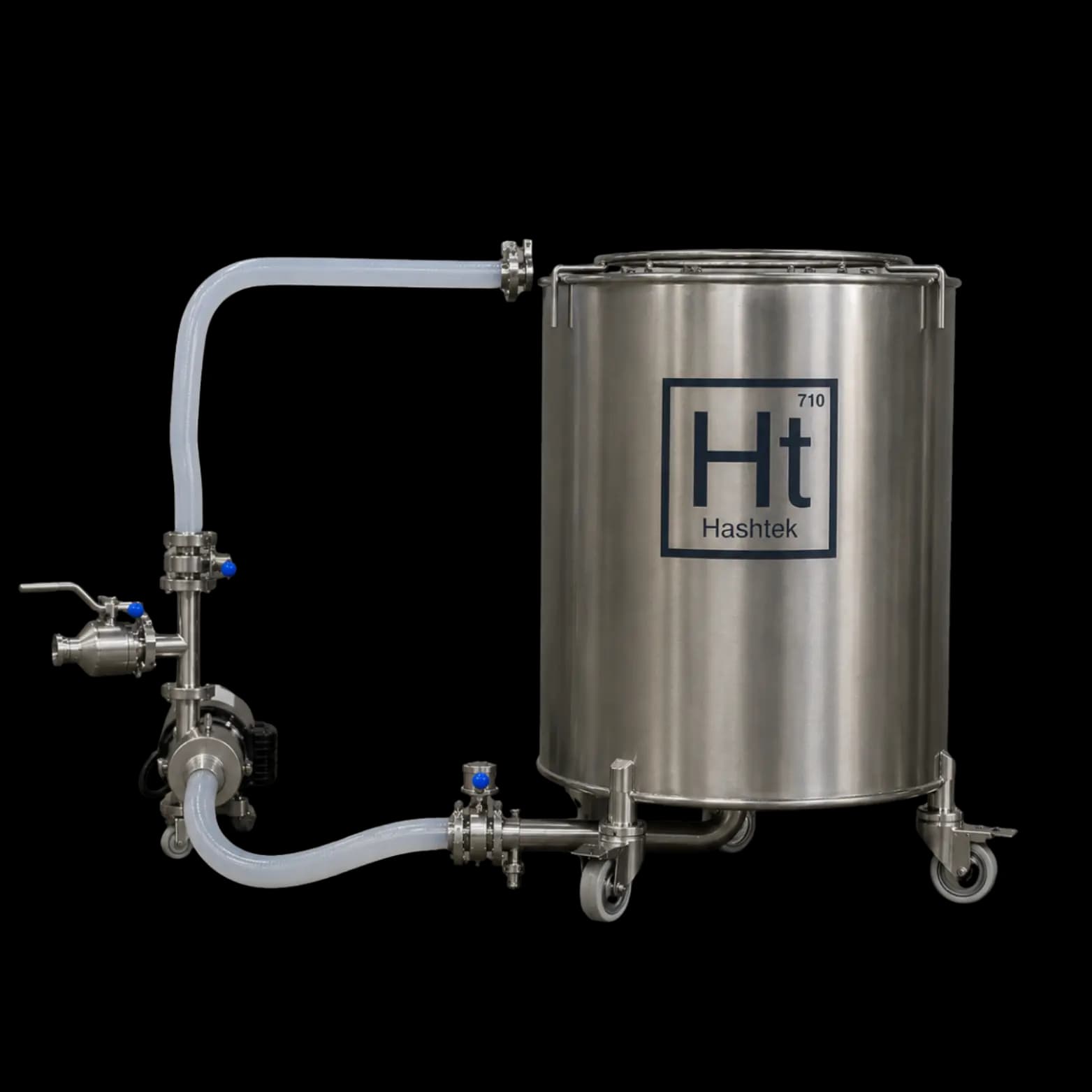

XL Platinum Recirculation Bundle (65 Gallon w/ Vortex MAX Pump)

$4,565.84

Enhance your extraction setup with the Hashtek XL Collection Vessel Bundle. This 65-gallon, 304-stainless collection vessel features a conical center drain for easy cleaning and a food-safe, nitrile-lined false bottom, letting you load up with ice to keep temperatures low without adding ice to your agitation vessel. The included bag adapter creates optimal separation between the filtration bag and vessel wall, boosting drainage and efficiency.

This XL bundle includes the powerful Hashtek Vortex Max Pump, offering superior flow, with sanitary silicone hoses that stay flexible in cold conditions. A three-way ball valve makes switching between recirculation and draining simple and hassle-free—perfect for those using the 65a or larger setups.

Don’t forget to get some staggered collection bags to go with your new collection vessel!

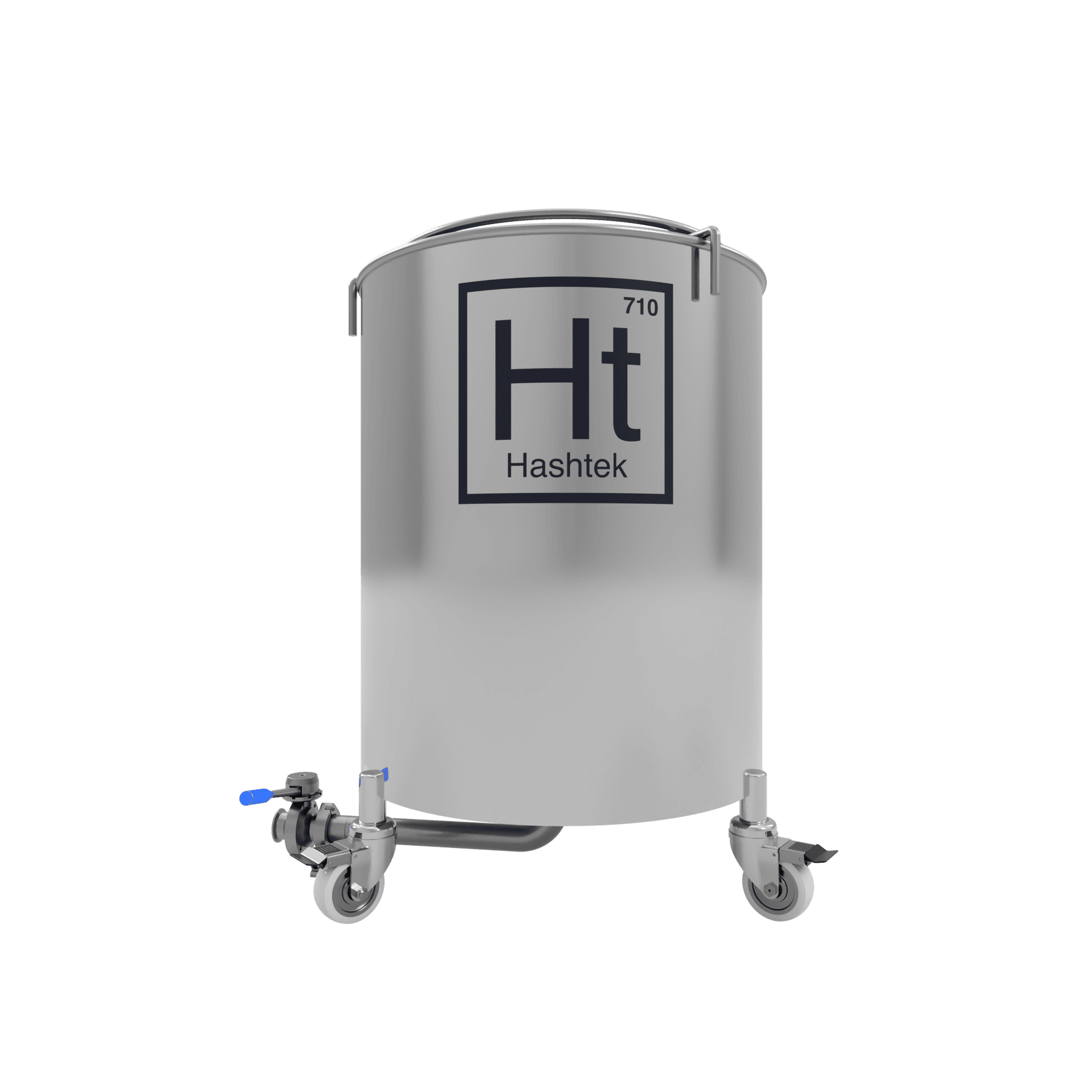

Collection Vessel
- Fabricated of sanitary 304-stainless
- Conical center drain for easy cleaning
- False Bottom Included
  - Same type of false bottom as used in our agitation tanks
  - Allows for the use of ice underneath the bags in the collection vessel to keep everything cold
  - Food Safe Nitrile Liner on False bottom
- Sanitary TIG welded 1.5″ Triclamp output
- Can be used as a hand washing vessel
- Perfect pairing with the A-series for a DIY recirculation setup
- We recommend the use of sanitary hoses
- Regular Size (46C)
  - 26″ Diameter
  - Total Height – 32 1/4″”
  - Height with Bag Adapter – 34 1/4″
  - Total Capacity 65 Gallons
  - 4x Blickle Locking Caster Wheels
Bag Adapter
- Hashtek bag adapter eliminates the “parachute bag” issue in 44-gallon collection vessels.
- Allows the use of 20-gallon collection bags in larger 44 or 50-gallon vessels, maintaining full water capacity.
- Tripod ring design secures bags tightly, preventing any slipping during use.
- Made in Canada from food-grade 304 stainless steel with durable TIG welding for lasting quality.
Vortex MAX Pump
- High performance curved blade impeller and strong rare earth magnets delivers 25 Gallons/min (97L/min) and up to 30ft of head pressure!
- Tri-clamp head connection fully disassembles in seconds for easy cleaning
- 1.5″ tri-clamp inlet and outlet connections
- Includes base with mounting holes for permanent installation if desired
- Includes an extra long 10ft long cord with plug (120V)
- Base acts as a cord wrap for convenient storage
- Powerful 150W motor
- Please note this a heavy duty pump. The total pump weight is 18lbs (8kg)
- DO NOT RUN DRY
Platinum Cured Sanitary Silicone Hose
- Sanitary TC Crimped. Hydraulic Machine Permanent Crimp.
- Braided for increased strength. Very easy to clean and resin will NOT stick to the side walls. Also clear so you can see inside your hoses to see what is in there.
- Cover : Smooth clear, food grade silicone hose
- Soft and supple at cold temperatures, unlike EPDM!
- Compliant with standards of FDA USDA and 3-A.
- Thick 1.5″ hose is used on the low-pressure side (collection vessel to pump), while the thinner 1″ hose is used on the high-pressure side (pump to agitation vessel).
T-Fitting with Dual Butterfly Valves
- Installed after the pump for quick switching between recirculation and drain-to-waste.
- Dual butterfly valves offer a more sanitary solution compared to traditional 3-way ball valves, as there’s no hidden cavity to clean.
- Garden hose adapter allows connection to any locally available garden hose for easy draining.
Tri-Clamp Clamps + Gaskets (Set of 9)
- Includes 9x 1.5″ clamps and 9x food-grade gaskets
- Compatible with all standard tri-clamp process connections
